Direktvergleich 13mm mit 15mm Koaxialkabel

TEST REPORT
Laboratory tests and measurement

Technicians

• Roberto Moroni
• Marco Frapiccini
  DATE: 13/06/16

Test Instruments:

• VNA Copper Mountain Planar 804/1
• KIT tarazura HPSC 50
• MilliOhm meter Hameg HM 8014
• LC meter Hameg HM 8018

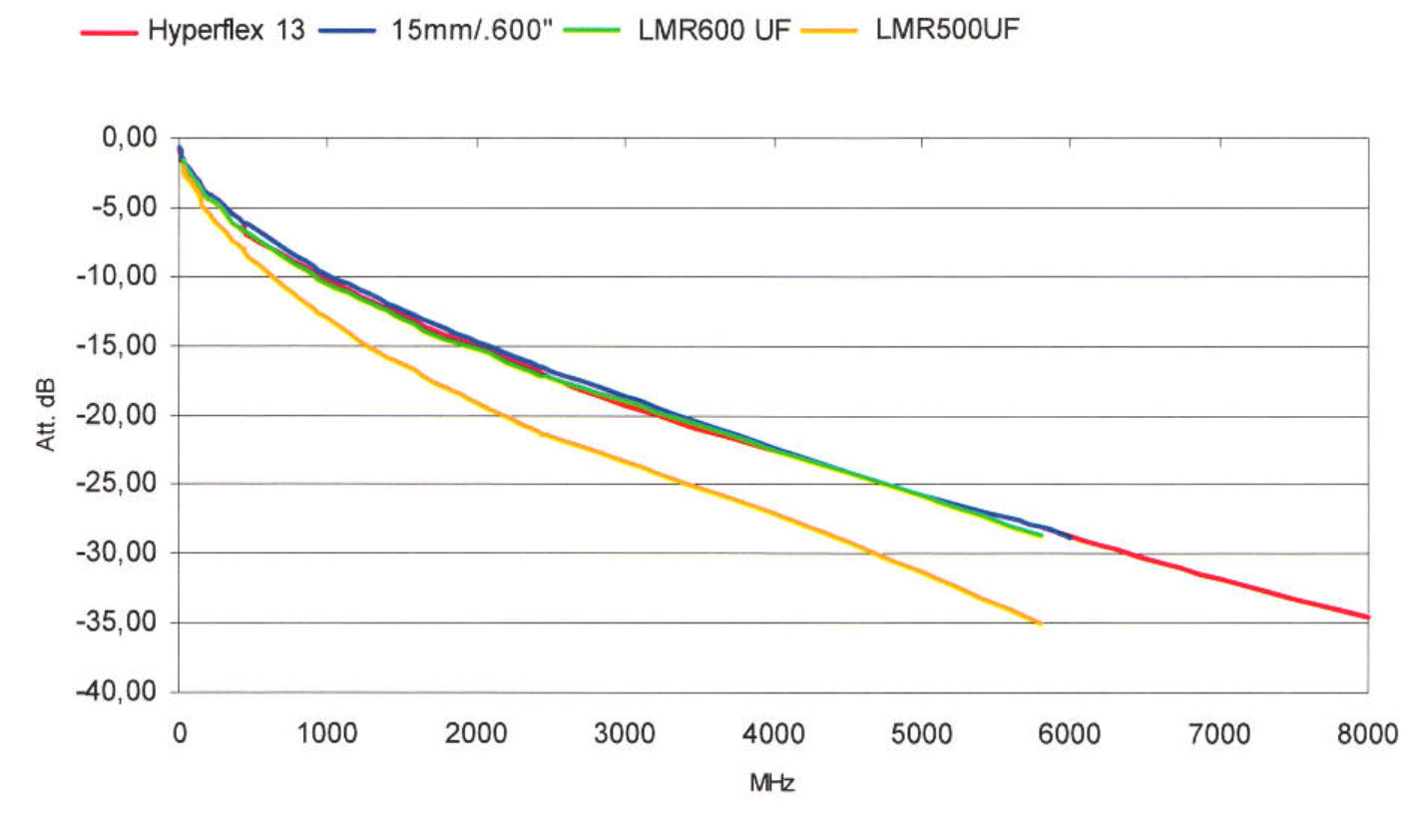

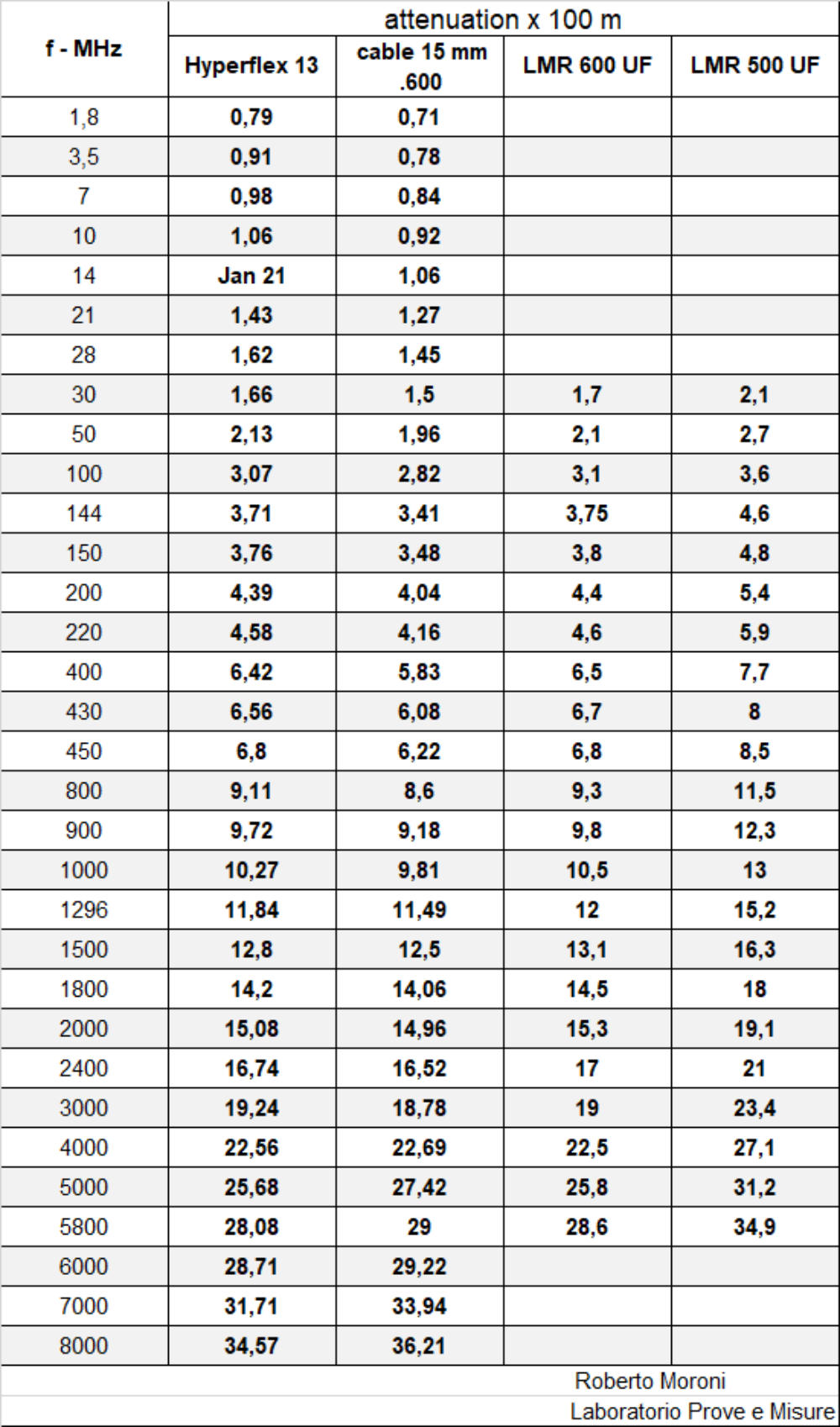

Attenuation comparison, cross reference between:

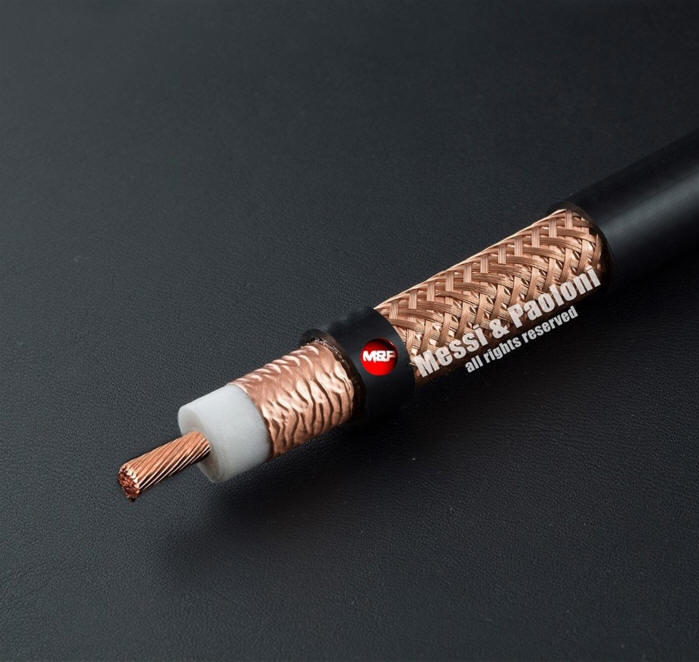

• Hyperfley 13 (37 wires), Ø 12,7 mm (0,5 '')
• Ø 15 mm cable / .600''
• LMR600 UF Ø 15 mm (0,59'')
• LMR500 UF Ø 12,7 mm (0,5'')
